ETRIKE HYDRAULIC BRAKE KIT WITH PARKING CONTROL

Upgrade your eTrike with the STAR UNION 221PYDJZ + KQ156/KQ150 hydraulic brake kit.

Designed for eTrike and utility eBike brake upgrades, this kit features parking brake function, 2-pin motor cut-off cables, integrated oil cup with mirror mount, 2-piston hydraulic braking, and external hose routing.

• Parking brake function
• 2-pin motor cut-off cables
• Integrated oil cup with mirror mount

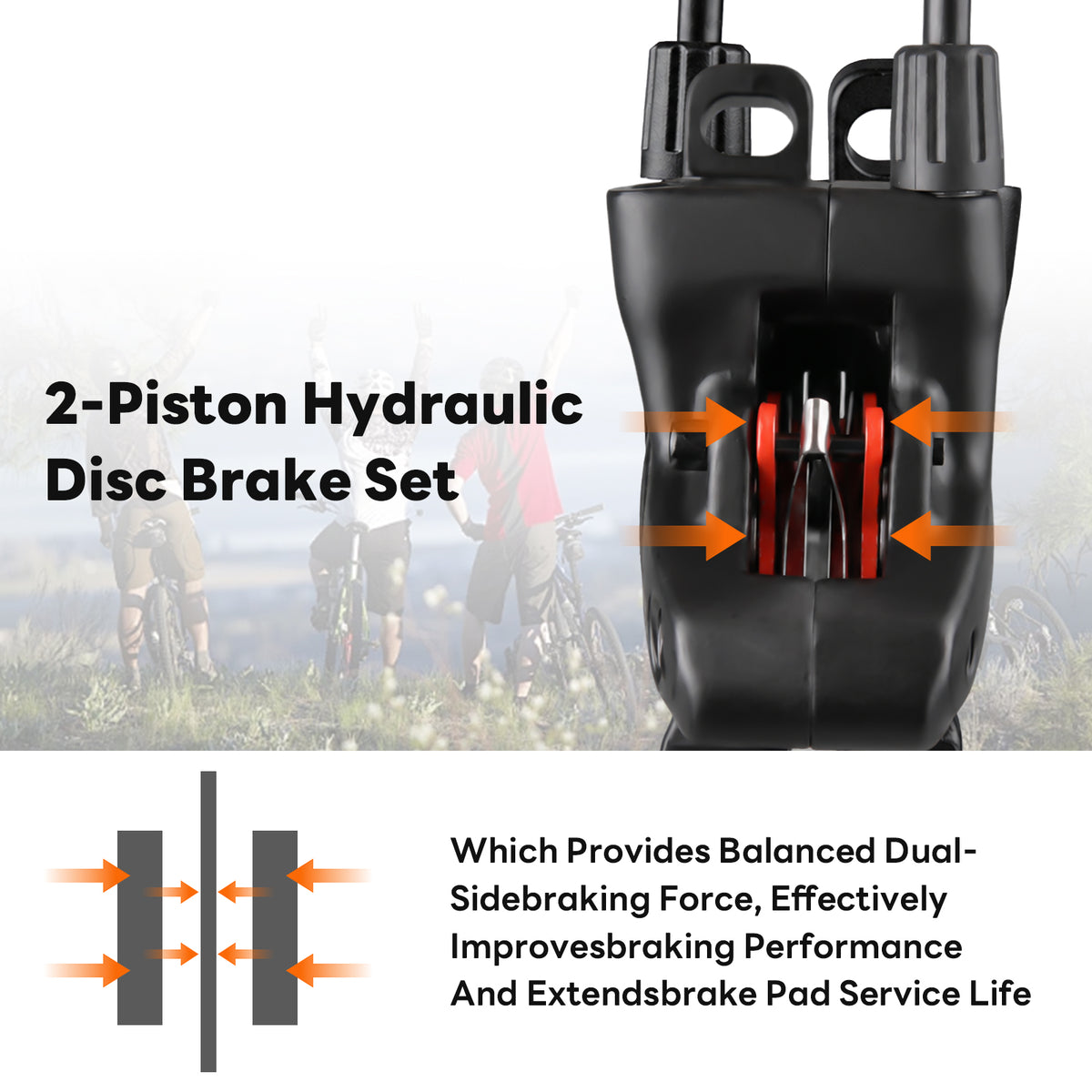

• 2-piston hydraulic braking
• Front 1000mm / Rear 1850mm hoses
• LP-16 brake pads included

Brake set only. Rotors and adapters are not included.

PARKING BRAKE FUNCTION

The parking brake helps keep your eTrike more stable when stopped or parked.

It is especially useful for electric trikes, cargo eBikes, and utility bikes that need better stopped-bike control.

2-PIN MOTOR CUT-OFF

The 2-pin motor cut-off cables help interrupt motor power when the brake lever is activated, giving you better control while braking.

Please confirm your eTrike uses compatible 2-pin connectors before ordering.

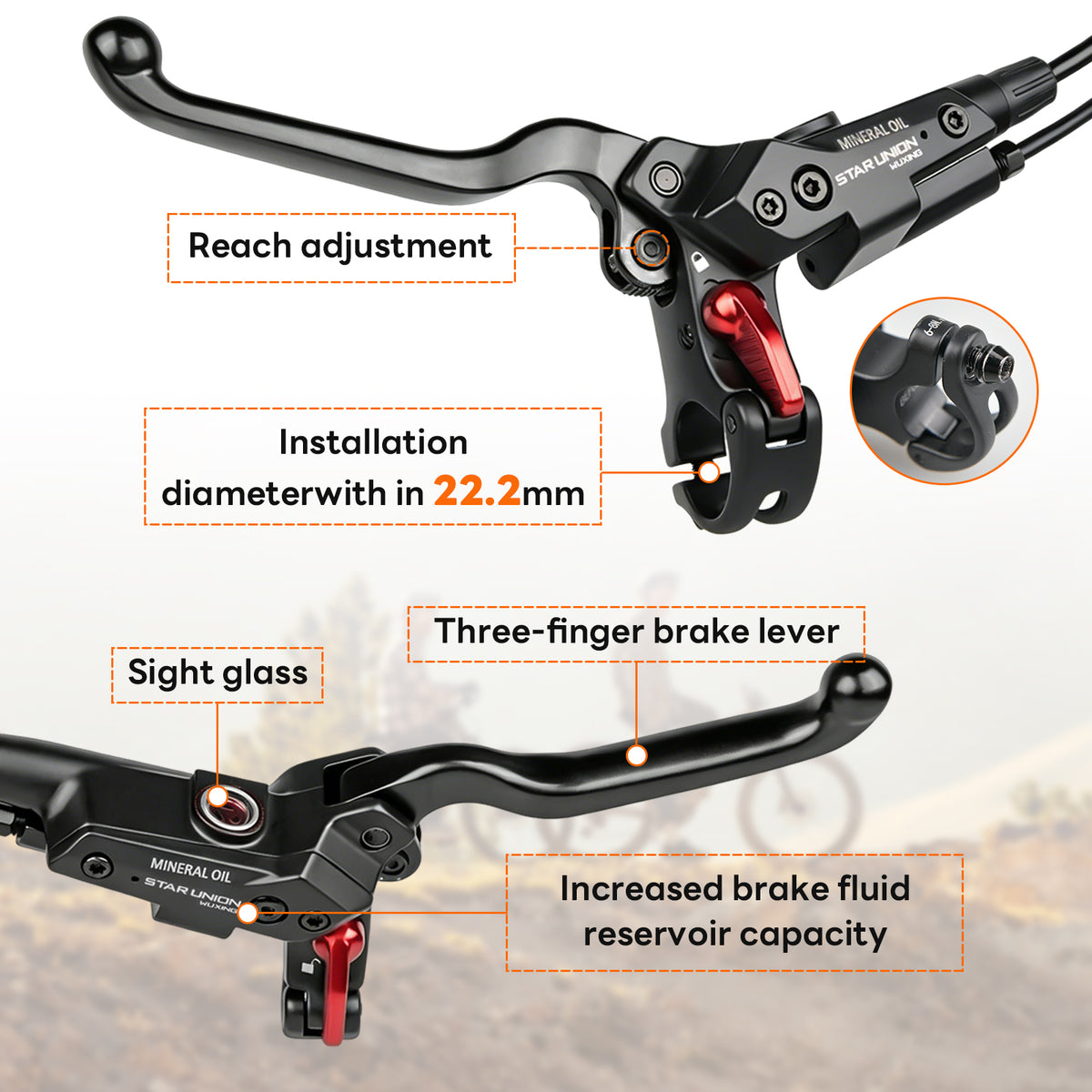

OIL CUP WITH MIRROR MOUNT

The integrated oil cup with mirror mount adds convenience for eTrike and utility bike setups.

This design helps combine braking control with a practical mounting position for mirror installation.

ETRIKE-SPECIFIC HOSE SETUP

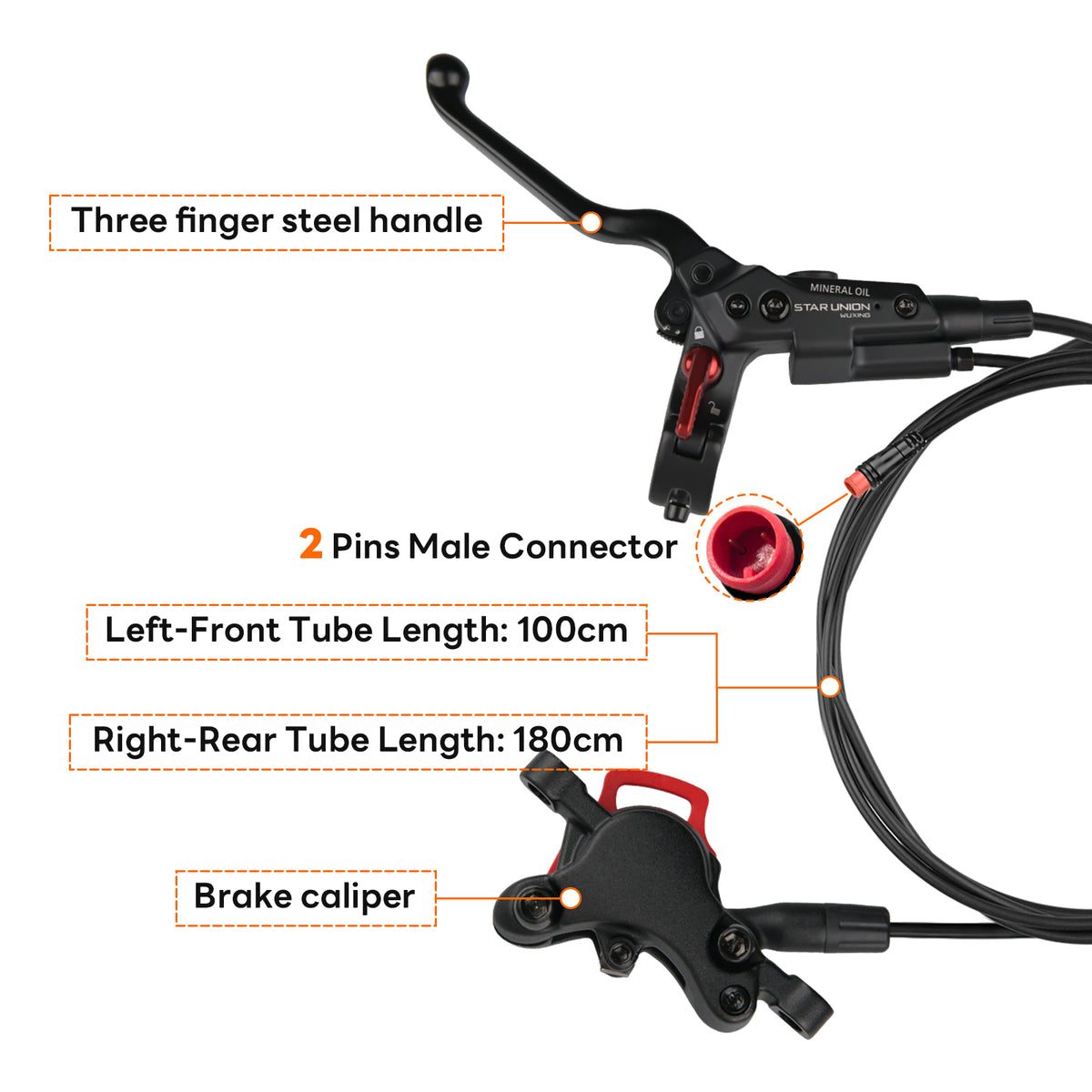

This brake kit includes a 1000mm front hose and a 1850mm rear hose with external hose routing.

Professional installation is recommended if hose shortening, fitting replacement, or brake bleeding is required.

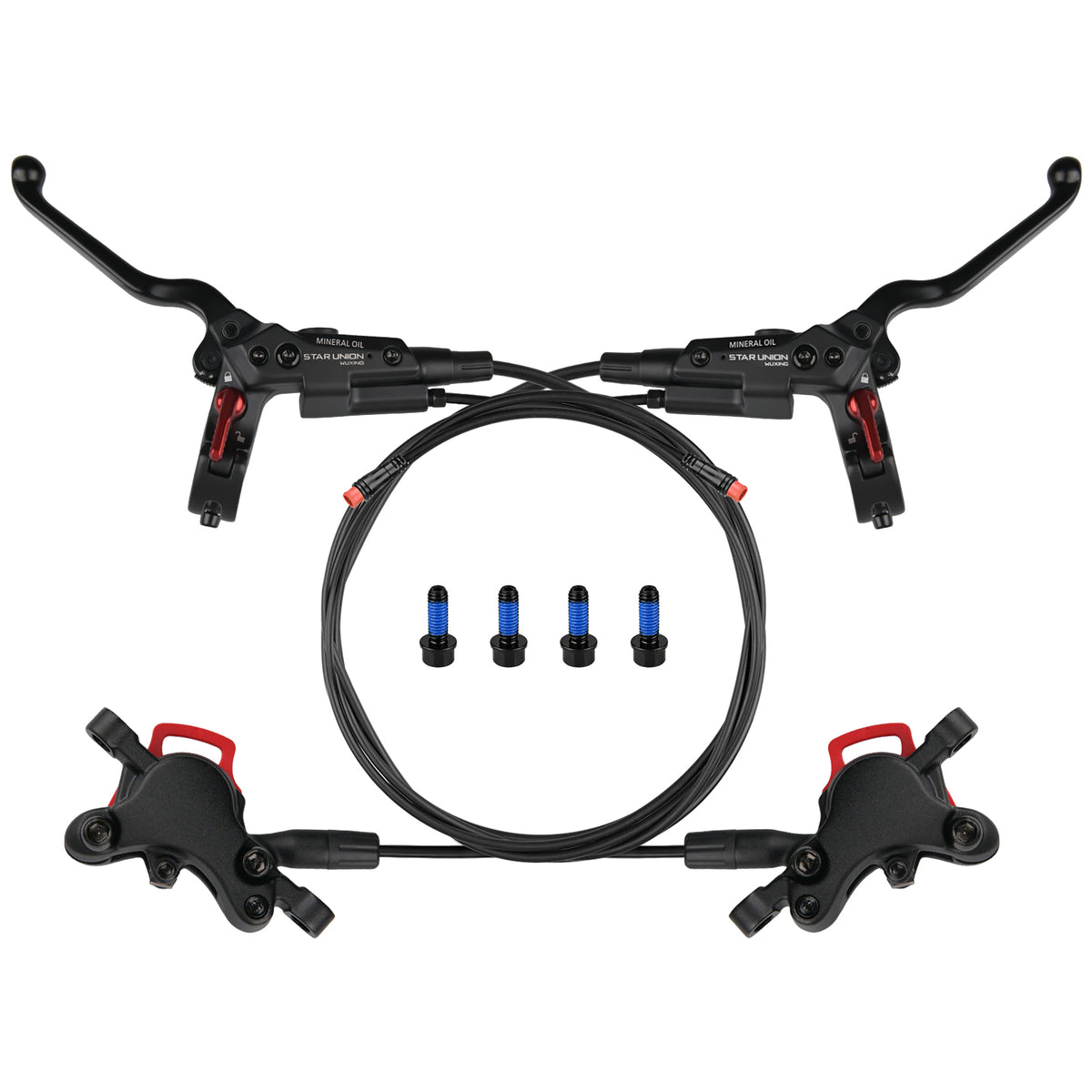

WHAT’S INCLUDED

• 1 × Front hydraulic brake with 1000mm hose
• 1 × Rear hydraulic brake with 1850mm hose
• 2-pin motor cut-off cables
• LP-16 brake pads
• Integrated oil cup with mirror mount

NOT INCLUDED

• Brake rotors
• PM / IS adapters
• Bleed kit

CHECK COMPATIBILITY

Before ordering, please confirm:

• 2-pin connector compatibility
• Front and rear hose lengths
• Brake mount and adapter requirements
• 2.3mm rotor compatibility
• eTrike brake layout and frame clearance

Not sure if it fits?

Send us photos of your connector, brake mounts, rotor size, hose routing, and eTrike model. We will help you check compatibility.

PRODUCT DETAILS

Model: 221PYDJZ + KQ156/KQ150
Brake type: 2-piston hydraulic disc brake
Main function: Parking brake + motor cut-off
Front hose length: 1000mm
Rear hose length: 1850mm

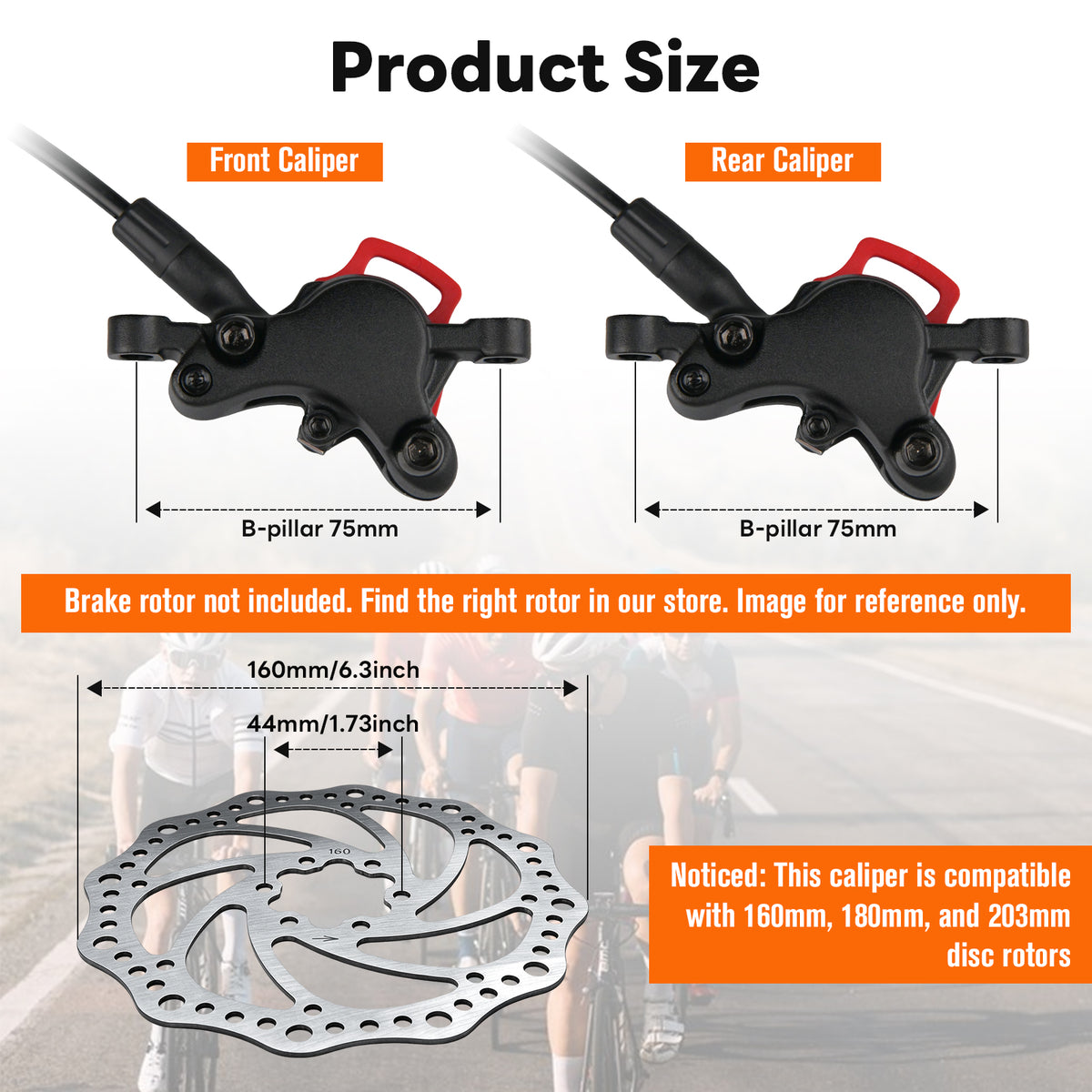

Rotor thickness: 2.3mm

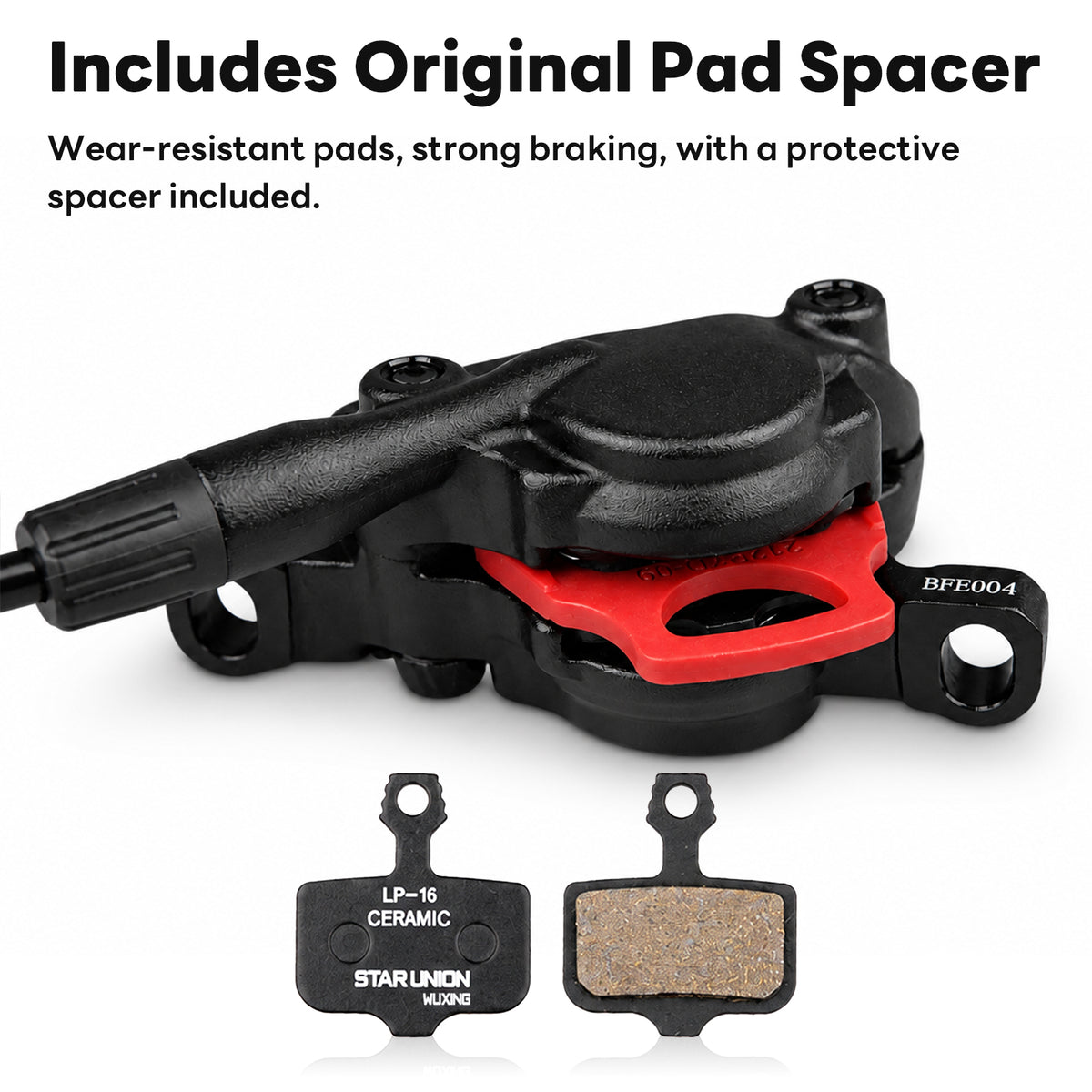

Brake pads: LP-16
Hose routing: External
Rotor: Not included
Adapter: Not included

FREQUENTLY ASKED QUESTIONS

Does it have a parking brake?
Yes. This model includes parking brake function.

Are rotors included?
No. Rotors and adapters are sold separately.

What rotor thickness is it designed for?
It is designed for 2.3mm thick rotors.

What hose lengths are included?
Front: 1000mm. Rear: 1850mm.

Are brake pads included?
Yes. LP-16 brake pads are included.

How can I check compatibility?
Send us photos of your connector, brake mounts, rotor size, hose routing, and eTrike model.
