STAR UNION 150PYDZ/2 eTrike Hydraulic Brake Set – 180mm Rotors, 2-Pin Cut-Off

$119.99
$119.99
Save $0.00

Key Feature:

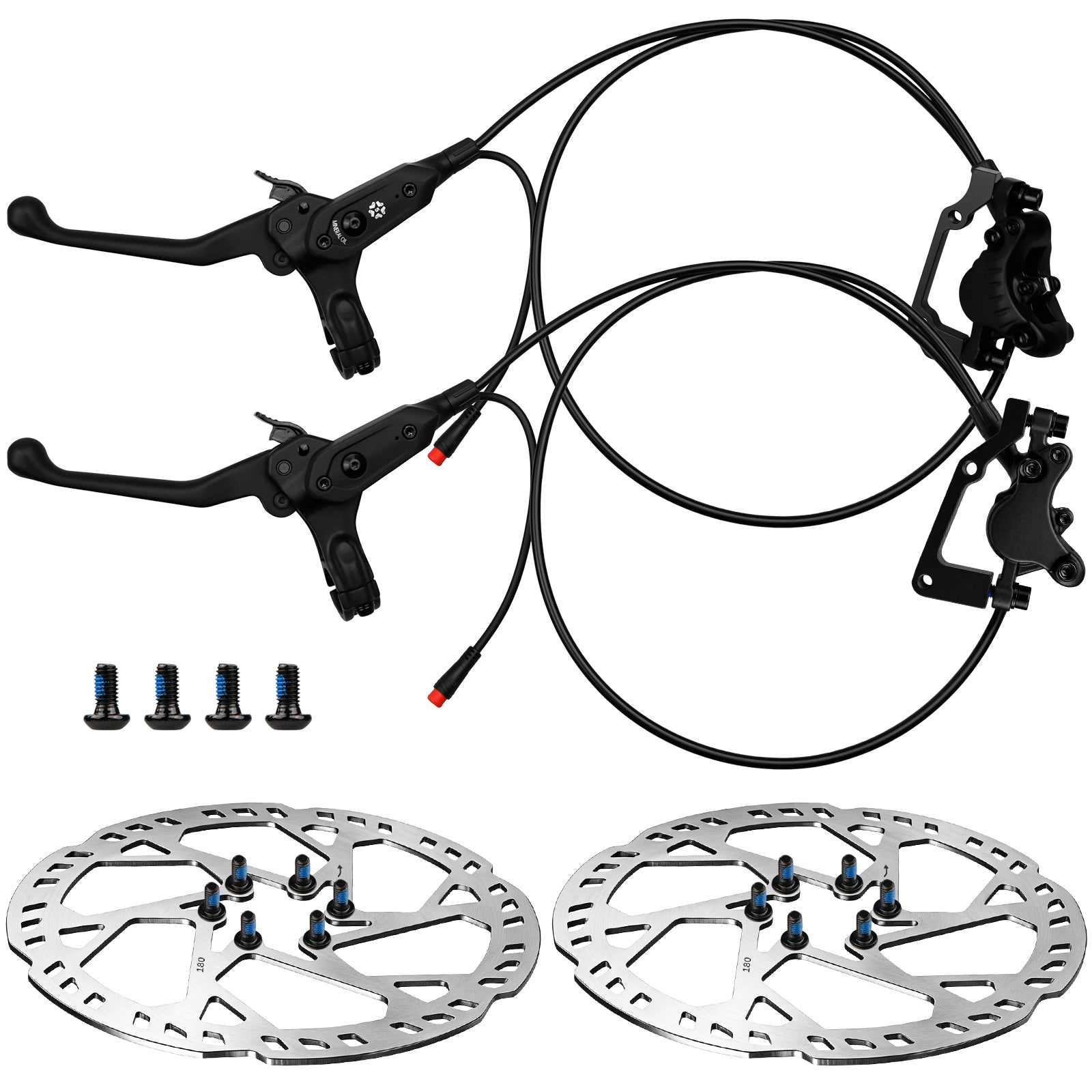

1. Front + Rear eTrike Brake Set – Includes left-front and right-rear hydraulic brakes, 2 × 180mm rotors, 2 adapters, and mounting hardware.

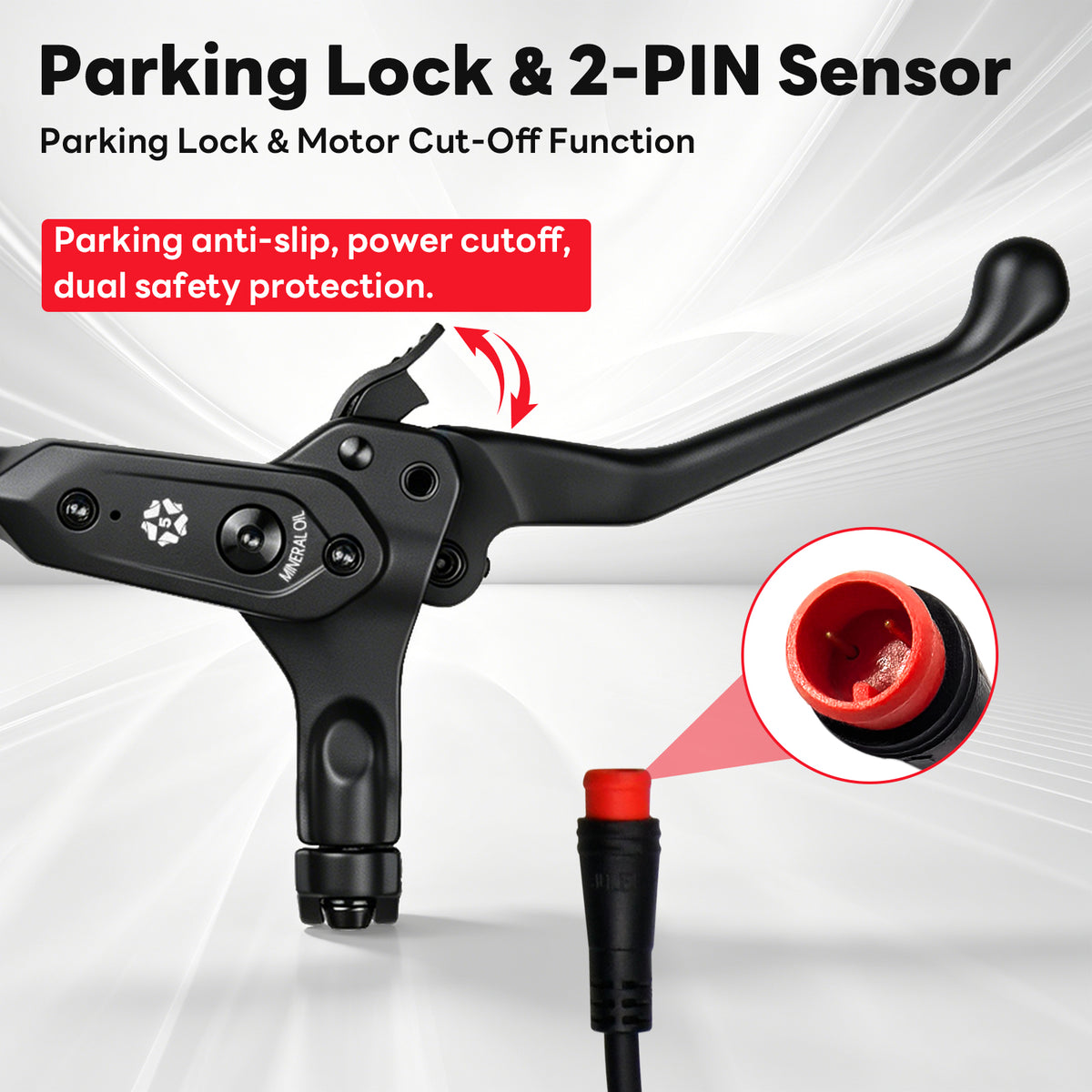

2. 2-Pin Motor Cut-Off – Integrated cut-off switches help stop motor power when the brake levers are activated.
3. Parking Lock Function – Built-in parking locks help keep your electric trike secure when stopped or parked.

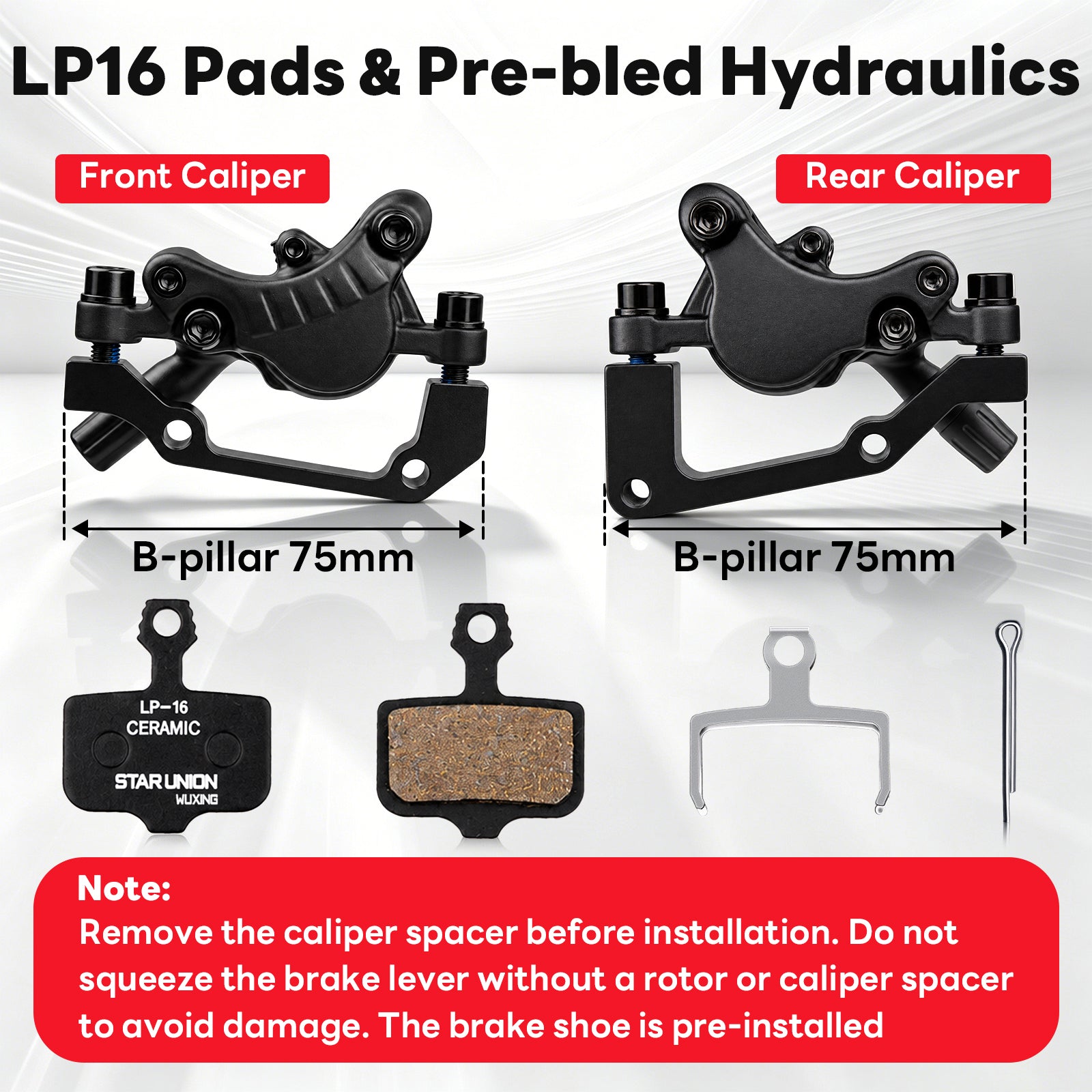

4. Dual-Piston Calipers – Pre-installed LP16 ceramic pads provide smooth and reliable braking.

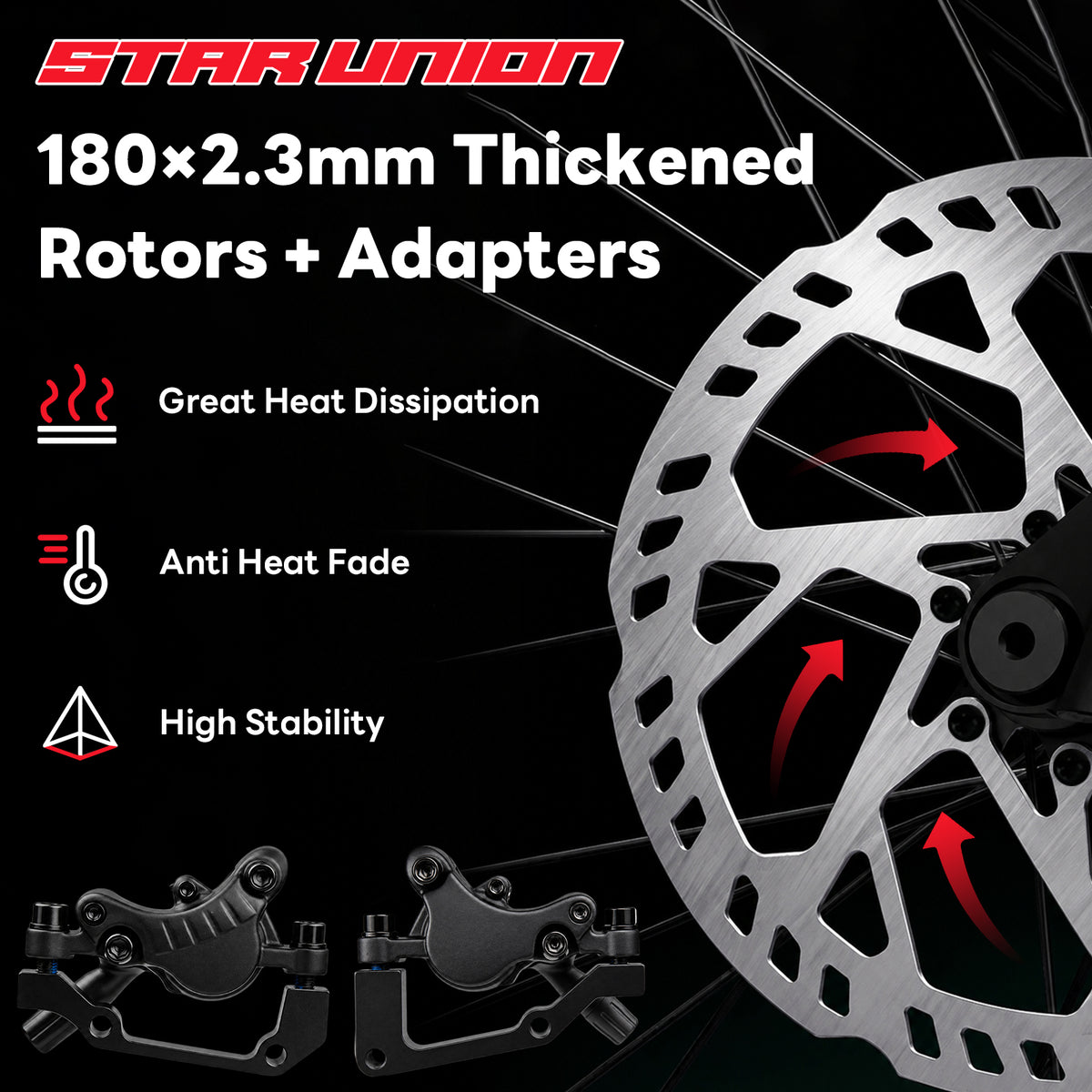

5. 180mm × 2.3mm Rotors – Heavy-duty rotors provide better stiffness and braking stability for electric trikes.

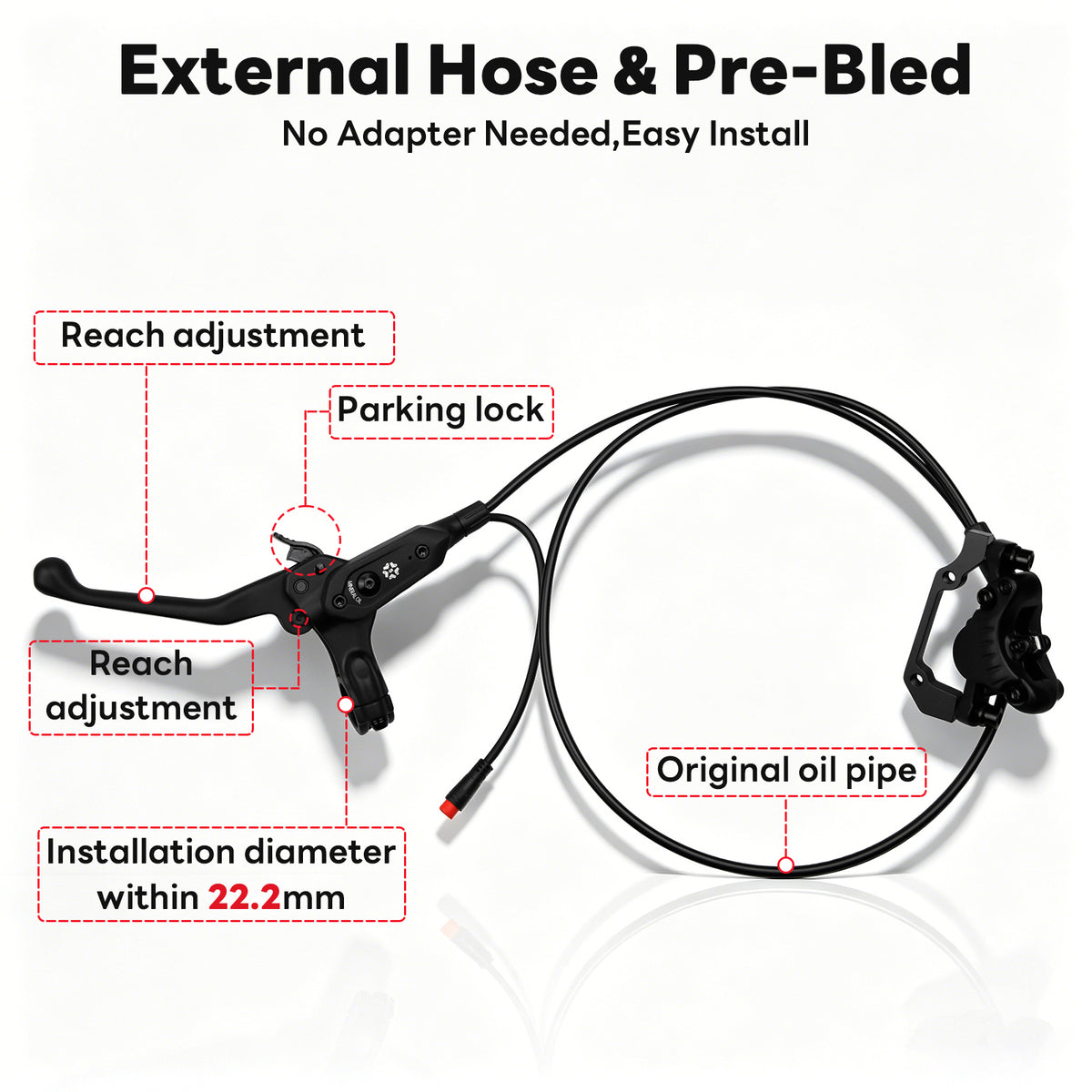

6. Pre-Bled Mineral Oil System – 1000mm front and 1800mm rear hoses are pre-filled for easier installation.

🚚 Ships from Our California Warehouse · 3–6 Day U.S. Delivery
🛡️ 1-Year Product Warranty · 30-Day Returns
💬 Fast Compatibility Support · Reply Within 8 Hours
Product description

STAR UNION 150PYDZ/2 ETRIKE HYDRAULIC BRAKE SET

The STAR UNION 150PYDZ/2 is designed specifically for electric trikes and adult tricycles. It combines dual-piston hydraulic braking, 2-pin motor cut-off, parking locks, ceramic brake pads, and 180mm heavy-duty rotors in one matched brake setup.

KEY FEATURES

• Left-front + right-rear hydraulic brake setup
• 2-pin motor cut-off connectors
• Parking lock function

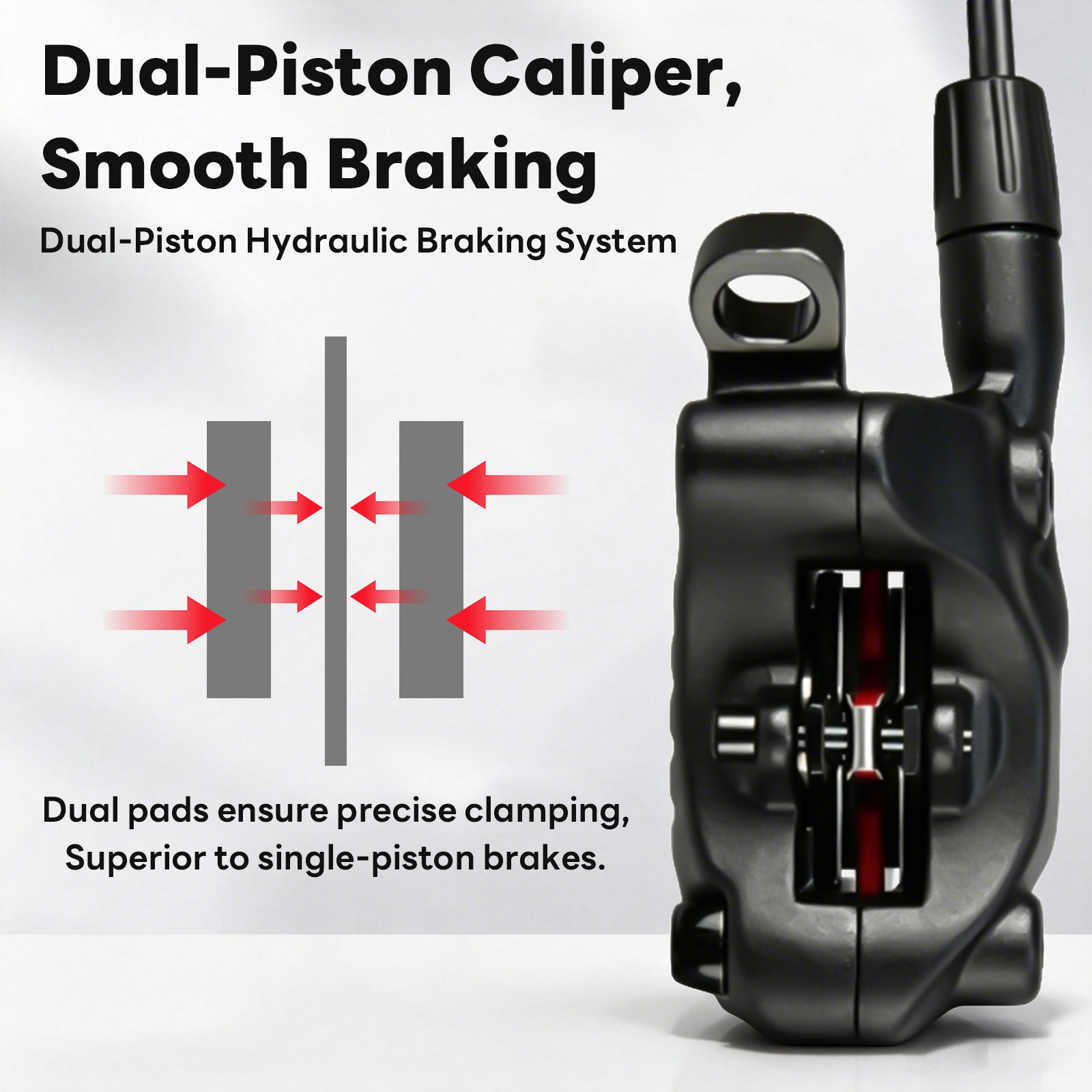

• Dual-piston hydraulic calipers
• Pre-installed LP16 ceramic brake pads
• 2 × 180mm × 2.3mm brake rotors
• Pre-bled with mineral oil

CHECK COMPATIBILITY

Before ordering, please confirm:

• Your vehicle is an electric trike or adult tricycle
• Left-front and right-rear brake layout
• 1000mm front hose and 1800mm rear hose lengths
• Compatible 2-pin motor cut-off connectors
• 180mm rotor size and 2.3mm rotor clearance
• Brake mounting position and adapter requirements

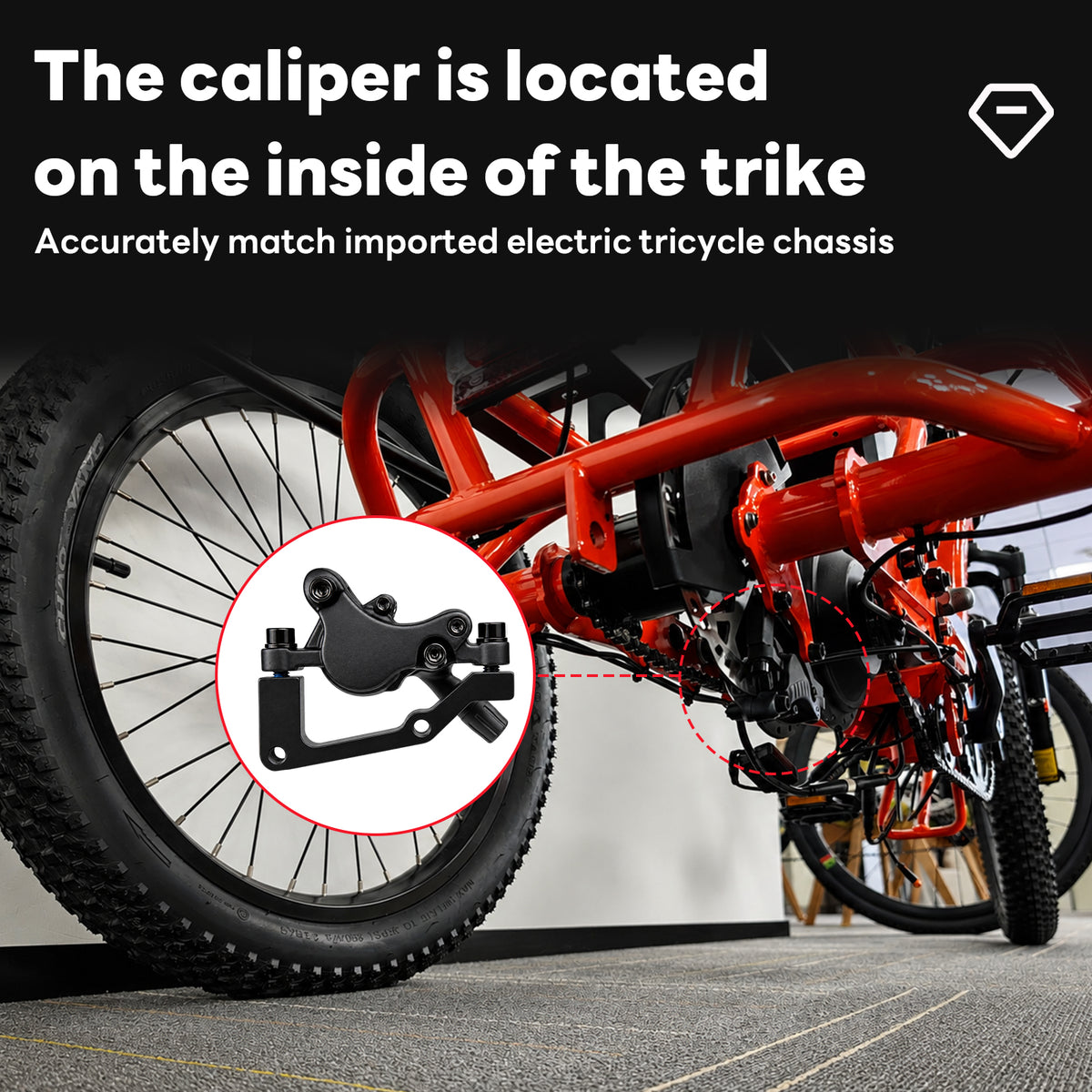

Important: The left-front caliper uses a right-side installation structure. This brake set is not designed as a standard replacement for two-wheel bicycles or regular two-wheel e-bikes.

WHAT’S INCLUDED

• 1 × Left-Front Hydraulic Brake
• 1 × Right-Rear Hydraulic Brake
• 2 × 180mm Brake Rotors
• 2 × Matching Brake Adapters
• Pre-installed LP16 Ceramic Brake Pads
• Required Mounting Hardware

NOT INCLUDED

• Installation Tools
• Extra Mineral Oil
• Brake Bleed Kit

PRODUCT DETAILS

Model: 150PYDZ/2
Brake Type: Dual-Piston Hydraulic Disc Brake
Rotor Size: 180mm
Rotor Thickness: 2.3mm
Brake Pads: LP16 Ceramic
Brake Fluid: Mineral Oil
Connector: 2-Pin Motor Cut-Off
Parking Lock: Yes
Front Hose: 1000mm
Rear Hose: 1800mm
Recommended Use: Electric Trikes / Adult Tricycles

FAQ

Q: Is this brake set for regular e-bikes?
A: No. This configuration is designed specifically for electric trikes and adult tricycles.

Q: Are the rotors and adapters included?
A: Yes. Two 180mm rotors and two matching brake adapters are included.

Q: Are the brakes pre-bled?
A: Yes. They are pre-filled with mineral oil for easier installation.
