Product Description

The Star Union QD470 is a professional road and gravel headlight system built in the style of top external-battery lights used by endurance and night-ride cyclists.

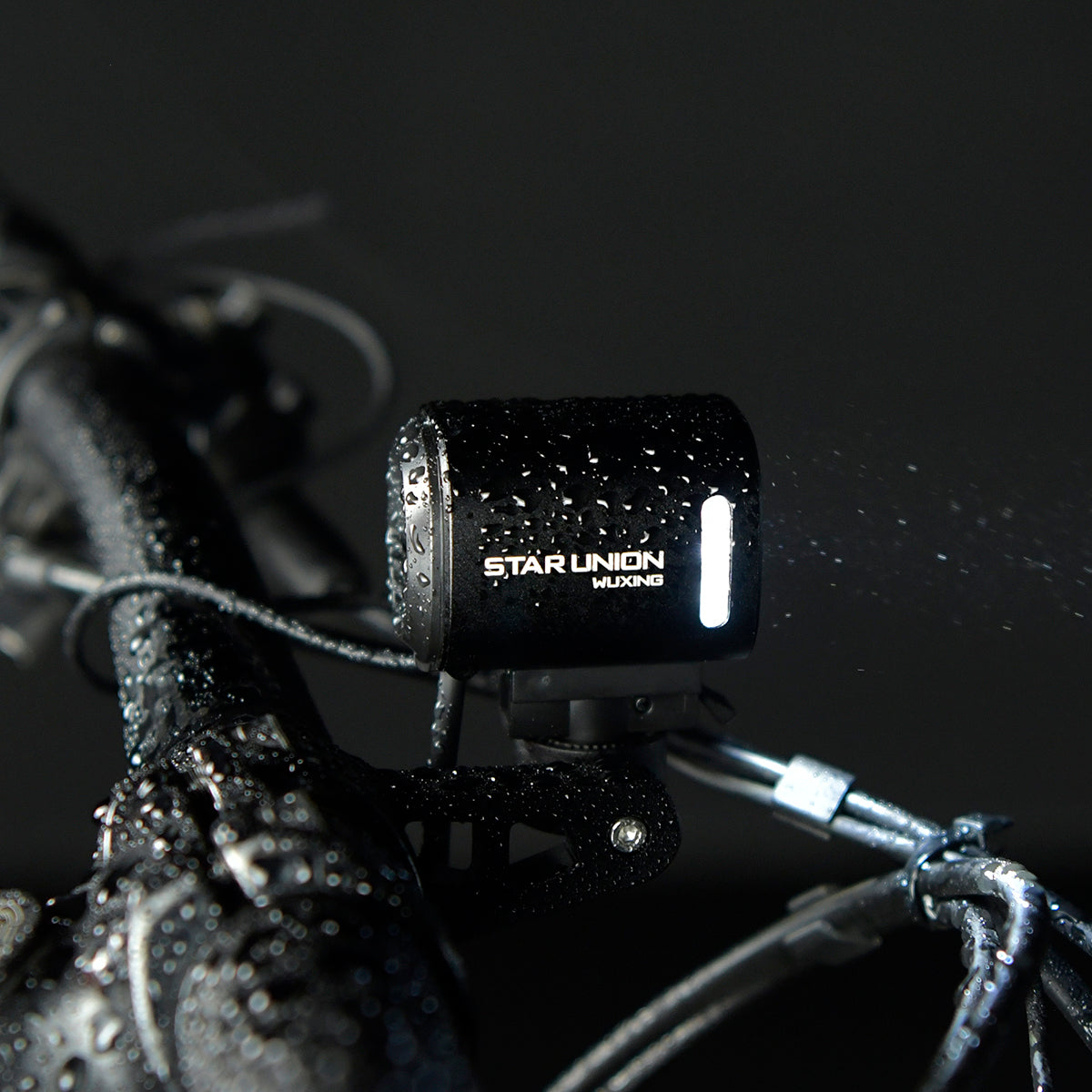

A compact 900-lumen headlamp sits cleanly on your handlebar, while the powerful external battery pack mounts securely to your bike frame to provide unmatched runtime stability.

The beam uses a modern cut-off design, delivering a clean, wide illumination zone that lights the road ahead without blinding drivers, riders or pedestrians.
Perfect for late-night commutes, long-distance races, gravel exploration and all-weather use.

Equipped with Type-C charging and output capability, the QD470-2 battery pack also functions as a power bank—ideal for keeping your phone, navigation device, or action camera running on long rides.

The system includes a 360° adjustable mount and a wired remote switch, allowing you to fine-tune beam angle and switch modes instantly while maintaining full control of your bike.

Specifications

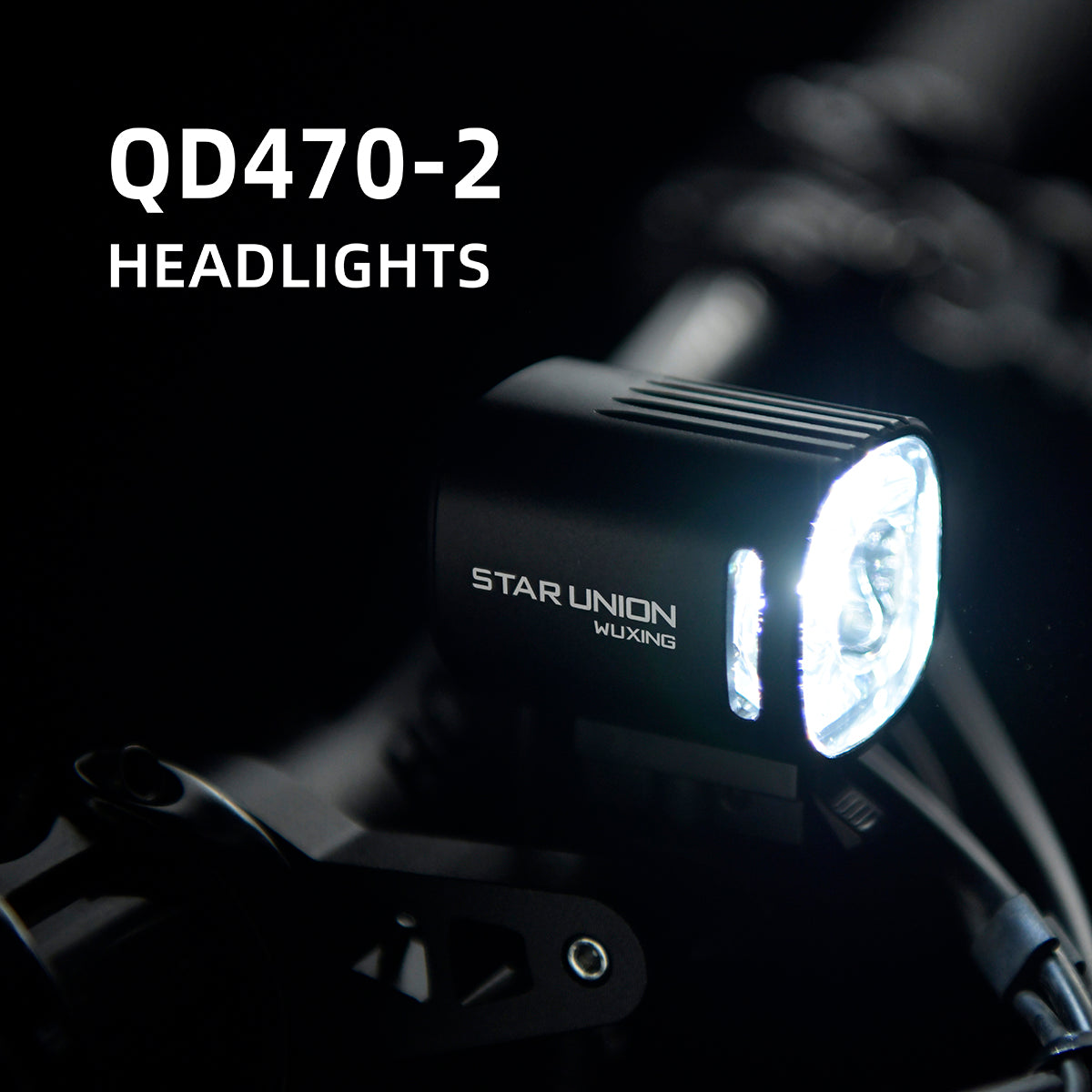

Lamp (QD470-2 Headlight)

• Max output: 900 lumens

• Beam type: Anti-glare cut-off beam

• Light modes: 225 lm / 425 lm / 650 lm / 900 lm

• Runtime:
  · 225 lm – up to 14.5 h
  · 425 lm – up to 6 h
  · 650 lm – up to 4 h
  · 900 lm – up to 3 h

• LED: 1 × high-power LED

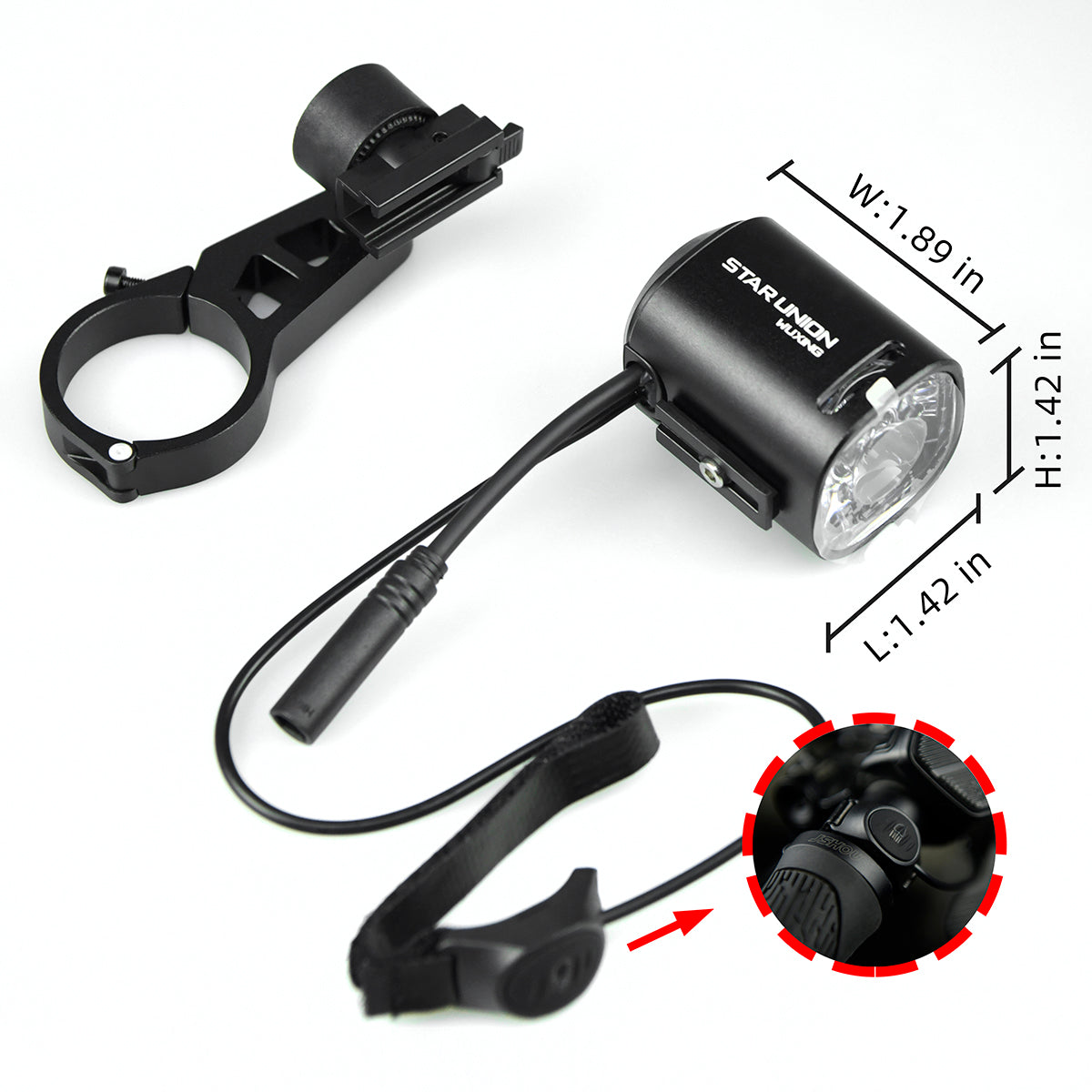

• Size: 48 × 36 × 36 mm

• Weight: approx. 90 g

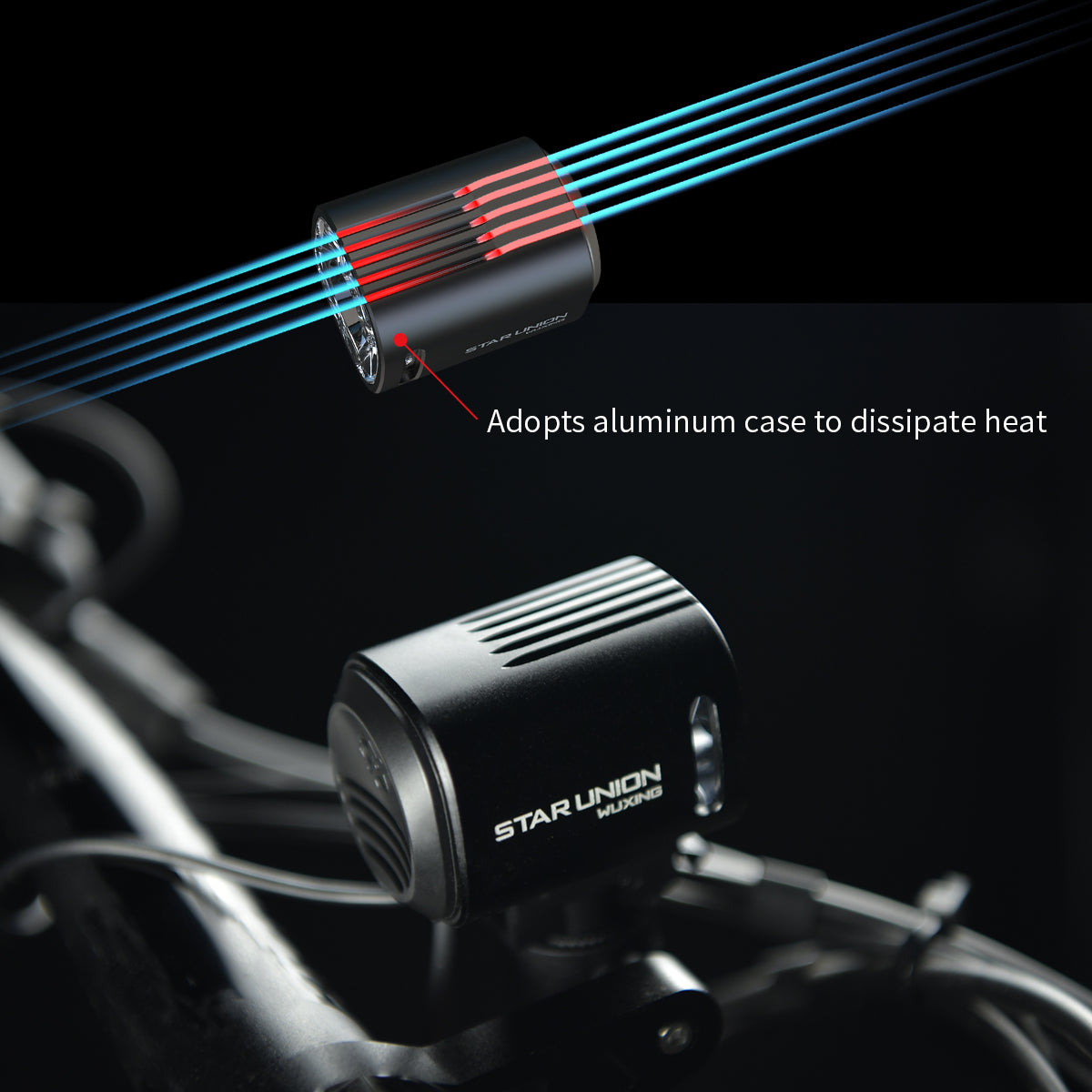

• Material: Aluminum alloy body

• Waterproof: IPX5–IPX6.5

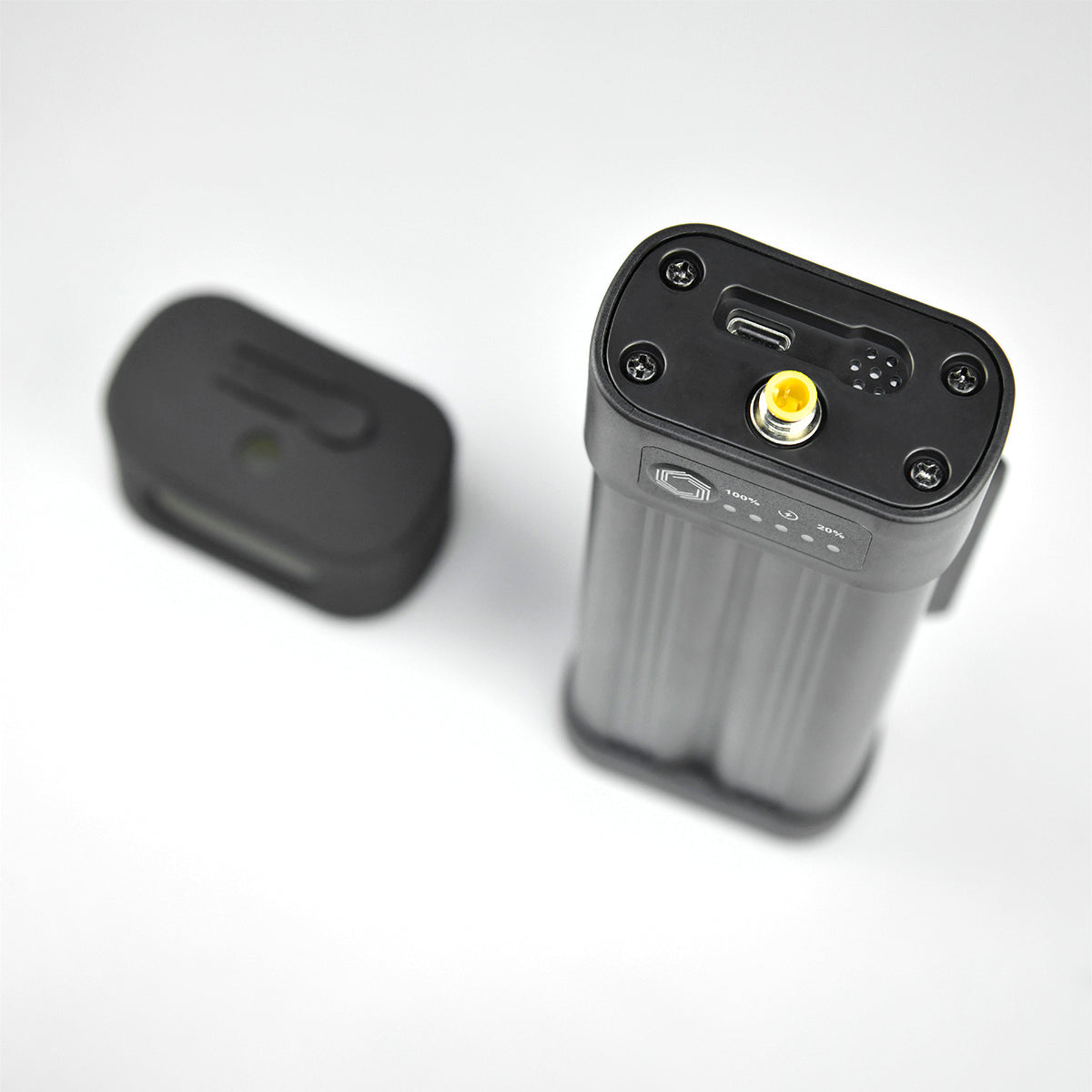

Battery Pack (CDB001)

• Battery: 4 × 18650 Li-ion cells

• Capacity: 14.4V, 12,800 mAh (184.32 Wh)

• Charging: Type-C, approx. 2.5 h (5V 3A)

• Output: Type-C / USB power-bank function

• Indicators: Multi-LED power display + low-battery audible alert

• Weight: approx. 387 g

• Size: 165 × 64 × 33 mm

Mounting System

• Handlebar compatibility: 25.4–31.8 mm

• Mount: 360° adjustable aluminum arm

• Quick-click lamp adapter

• Remote switch: wired, Velcro strap mounting

Functions & Operation

Headlight Controls

• Long press 3 seconds → Turn ON (225 lm)

• Short press → Cycle through modes (225 / 425 / 650 / 900 lm)

• Long press 3 seconds → Turn OFF

Battery Pack Functions

• Multi-LED battery indicator

• Low-power alert: red LED + buzzer alarm

• Type-C charging input

• Type-C / USB power output

• Automatic shutdown when idle for 30 seconds

Installation

• Lamp mounts to handlebar via 360° adjustable bracket

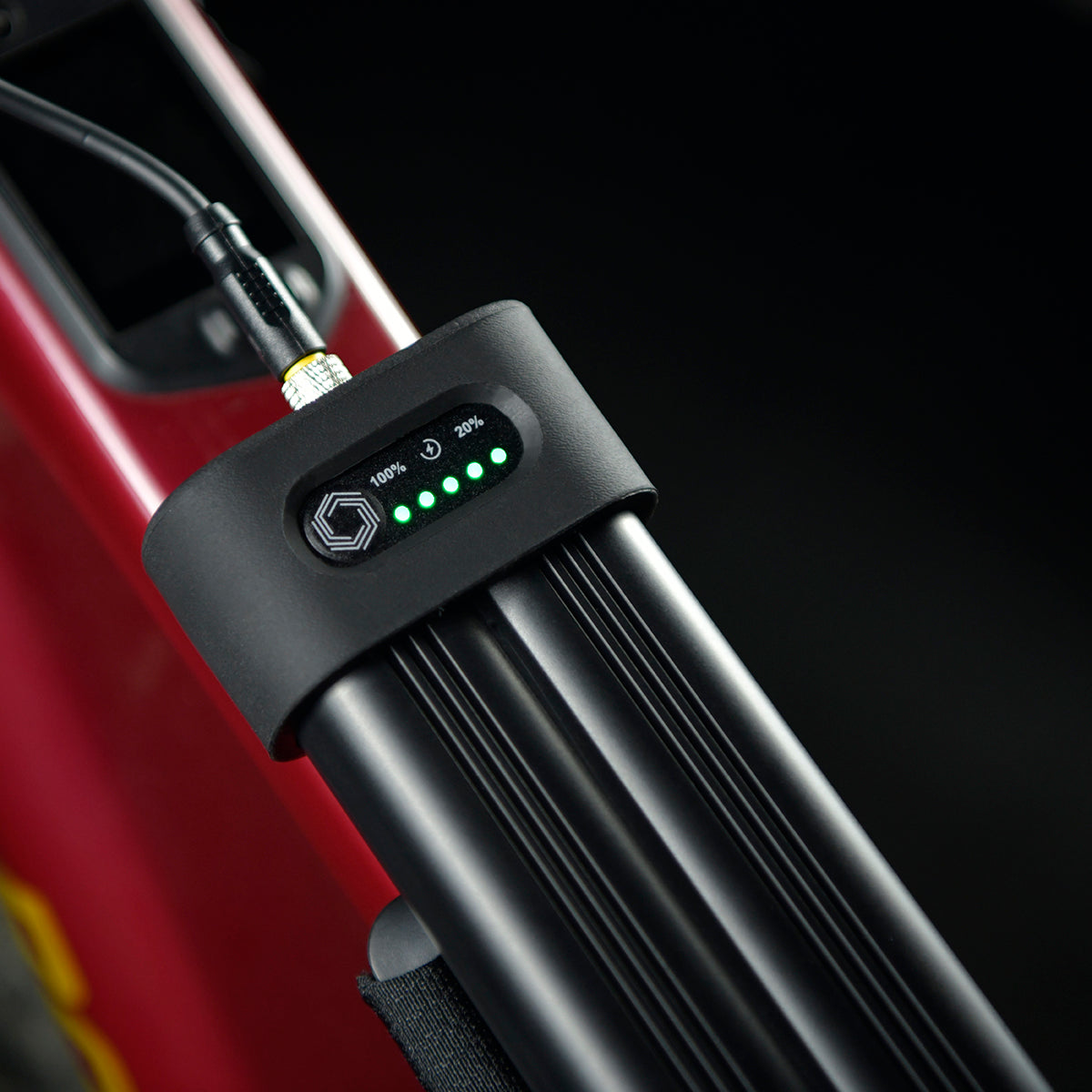

• Battery attaches to top tube or down tube using Velcro strap

• Cable outlet should point toward handlebars

• Quick-click adapter allows fast lamp removal

Package Includes

• 1 × QD470-2 Headlight

• 1 × CDB001 Battery Pack

• 1 × Aluminum Handlebar Mount (25.4–31.8 mm)

• 1 × Quick-click Lamp Adapter

• 1 × Wired Remote Switch

• 1 × Battery Velcro Mounting Strap

• 1 × Type-C to USB-A Cable

• 1 × Type-C to Type-C Cable

• 1 × DC Power Cable

• 1 × M3 Allen Key

• 1 × User Manual

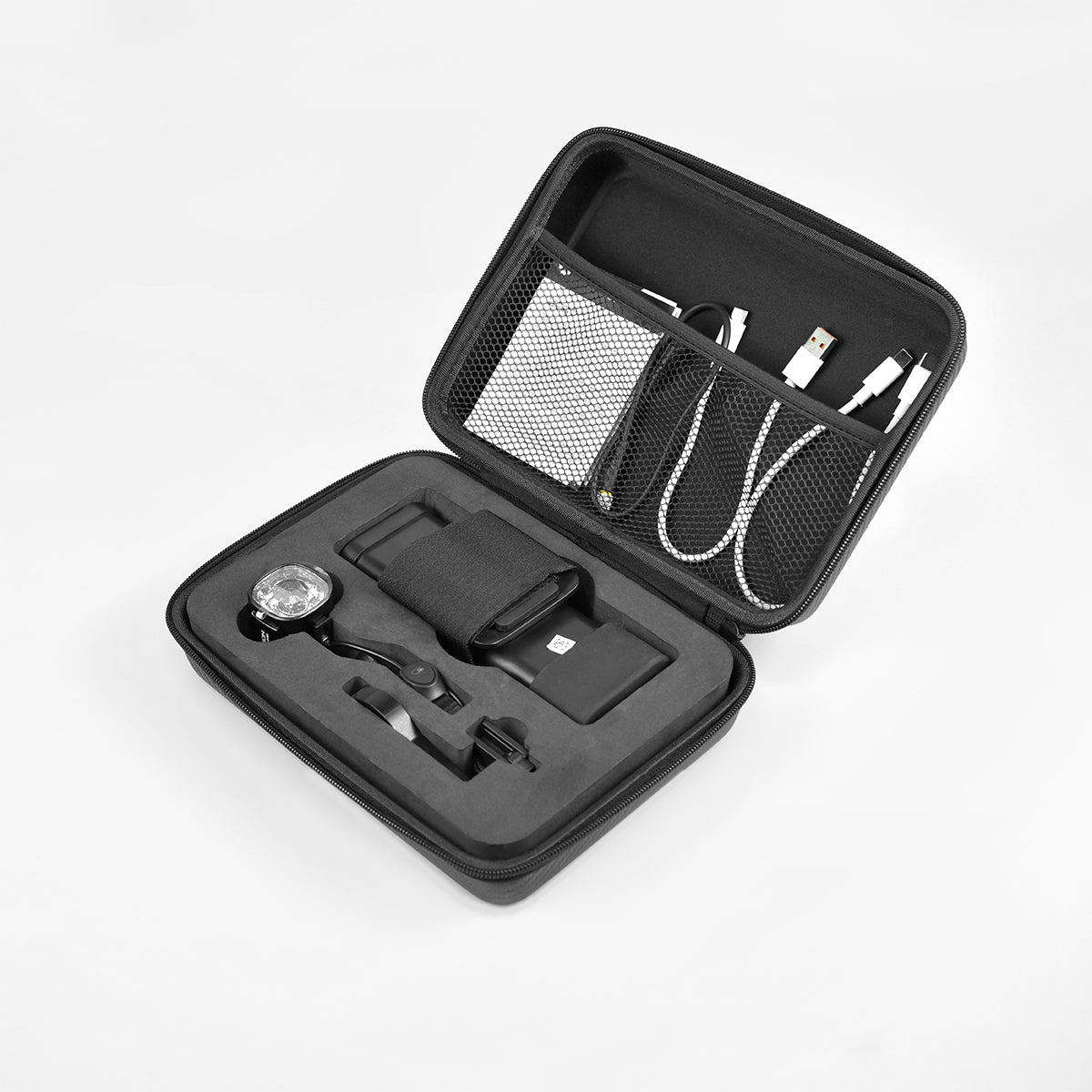

• 1 × Hard-Shell Carrying Case

FAQ

Q: Is the QD470-2 suitable for road riding?
A: Yes. The cut-off beam prevents glare and is ideal for shared roads and bike paths.

Q: Can it be used in heavy rain?
A: Yes. The lamp and battery pack are water-resistant and designed for rainy conditions.

Q: Can the battery charge my phone or GPS?
A: Yes. The battery includes Type-C and USB output for powering external devices.

Q: How long does it run on high mode?
A: About 3 hours at 900 lumens, with up to 14.5 hours in eco mode.

Q: Where should I mount the battery?
A: The top tube or down tube is recommended for best cable routing and stability.
